Cryogenic Economizers For Liquid Cryogenic Cylinder

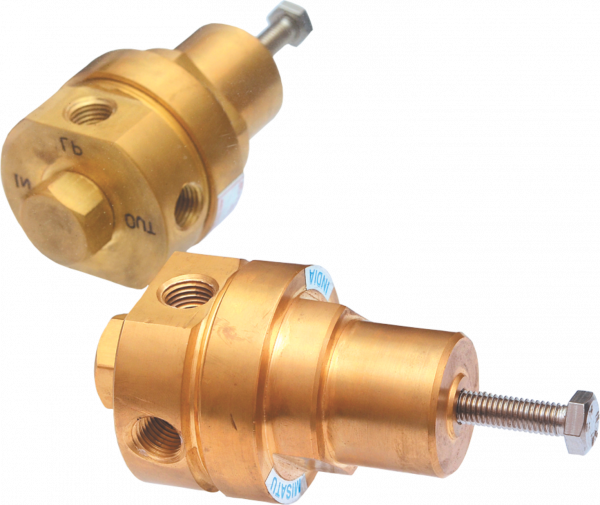

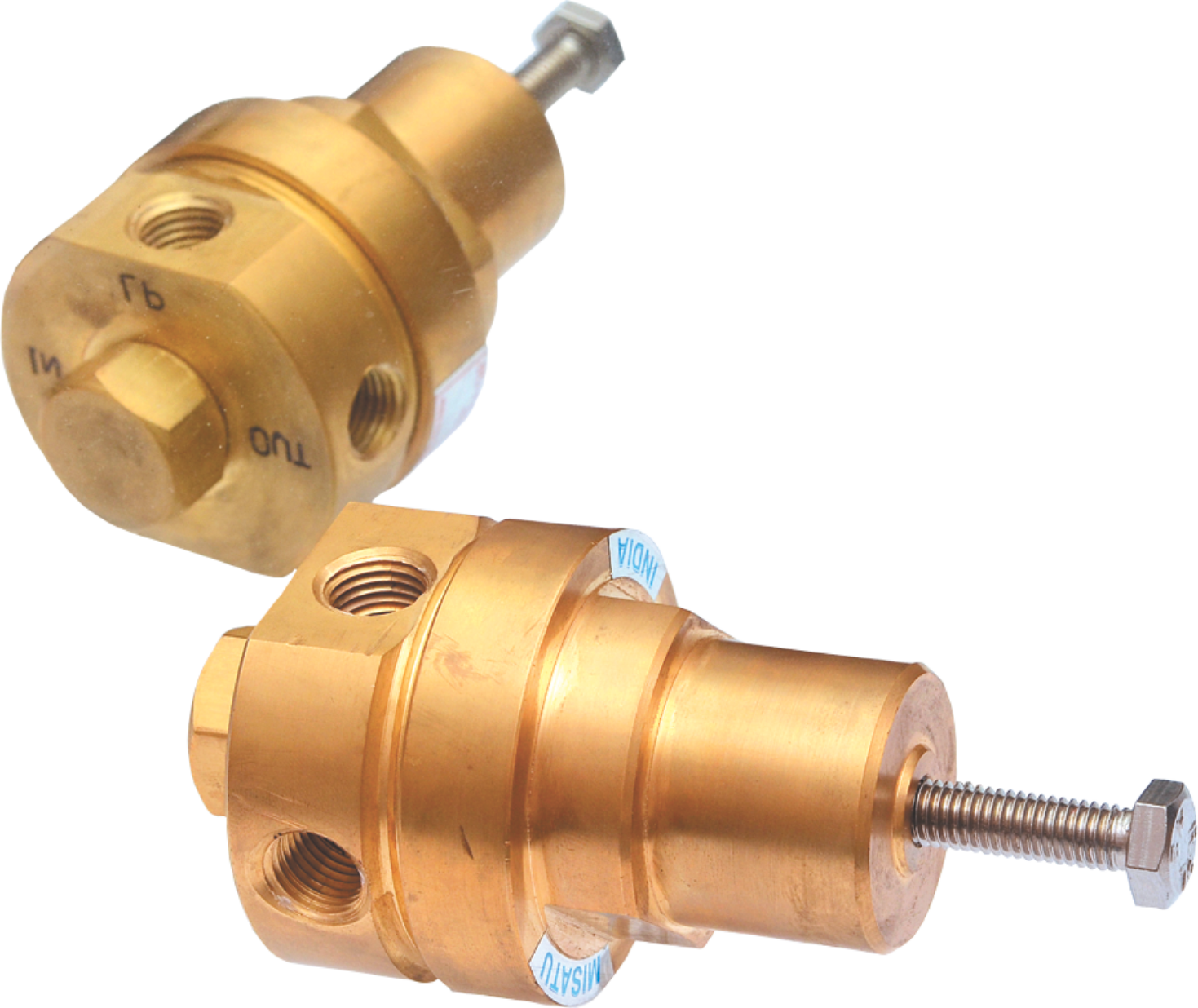

“Misatu “cryogenic economizer are designed to utilize the gas pressure in a liquid cryogenic cylinder
To avoide lost to the atmosphere through relife valve.It may be used in cryogenic lines,vaporizer and
Converter application.
They are especially useful in installation where space and cost limitation are important.
Optional Needle Valve
Technical Data Sheet
| Gas Service | Model | Model For Flow Meter | Cylinder* | Delivery | Connections* | |||
|---|---|---|---|---|---|---|---|---|
| Pressure Bar | Guage Range Bar | Pressure Bar | Guage Range Bar | INLET | OUTLET | |||
- Interchageable with existing cryogenic Economizer unit.
- Connection : Both End ¼ Nptf
- Lock nut provided to screw setting.
- Max.Delivery pressure 24 bar/350 psi.
- Temperature range – 196 to 74 deg. C.
- Max.Inlet pressure 38 bar/550 psi.
- Filterat inlet to prevent entering foreign Materials in to regulator.
Body – Brass
Bonnet – Brass
Seat – Stainless Steel
Spring & NUT – Stainless Steel
Diaphragm Gasket – PTFE
