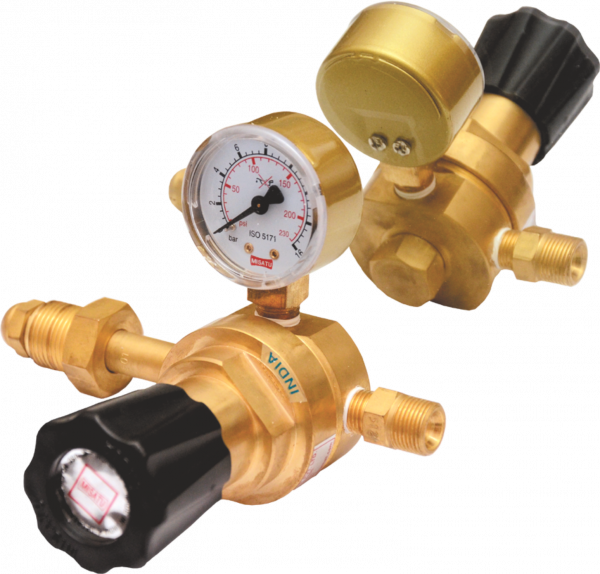

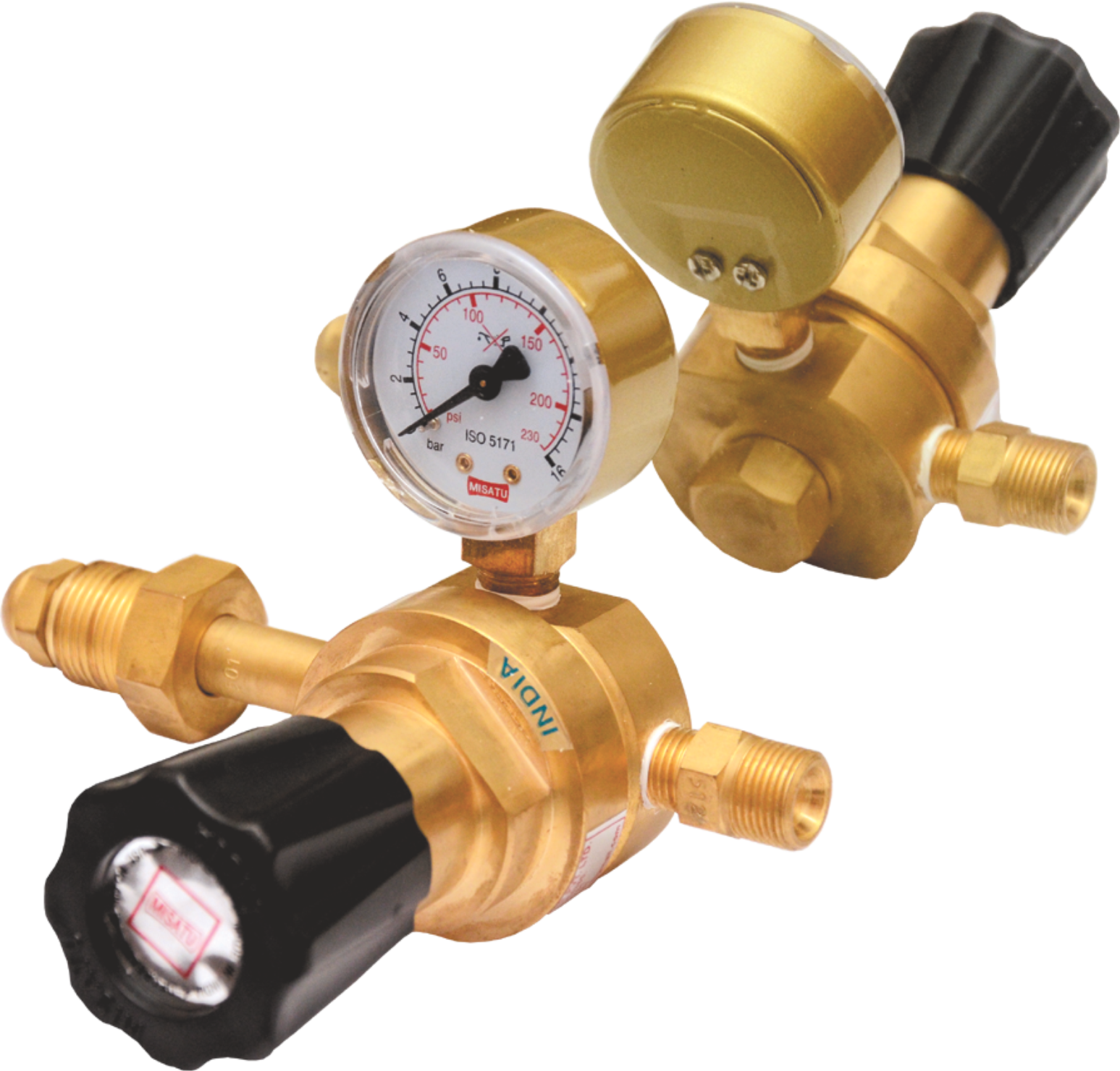

Cryogenic Liquid Cylinder Regulator For Oxygen/nitrogen/argon Or Carbon Dioxide
Optional Needle Valve
Technical Data Sheet
| Gas Service | Model | Model For Flow Meter | Cylinder* | Delivery | Connections* | |||
|---|---|---|---|---|---|---|---|---|
| Pressure Bar | Guage Range Bar | Pressure Bar | Guage Range Bar | INLET | OUTLET | |||
- Easy adjusting screw to maintain pressure setting
- Connection : inlet 5/8 bspm and out let ¼ nptf
- Mounted with delivery pressure gauge 0-40 Bar.
- Max.Delivery pressure 24 bar/350 psi.
- Temperature range – 196 to 74 deg. C.
- Max.Inlet pressure 38 bar/550 psi.
- Filterat inlet to prevent entering foreign materials in to regulator
Body – Brass
Bonnet – Brass
Seat – PTFE
Spring & NUT – Stainless Steel
Diaphragm Gasket – PTFE
