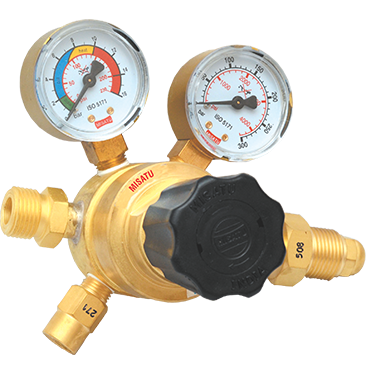

HF Series High Flow Single Stage Compressed Gas Regulators

These general purpose single stage regulators are recommended for inert and non-corrosive gas applications where precise control of delivery pressure is not necessary. They are well suited. Where constant delivery pressure regardless of fluctuations in cylinder pressure are required.

Download Brochure

Optional Needle Valve

Technical Data Sheet

Gas Service Model Model For Flow Meter Cylinder* Delivery Connections*
Pressure Bar Guage Range Bar Pressure Bar Guage Range Bar INLET OUTLET
*As per customer requirement
INLET - IS 3224 : 2002
OUTLET - ISO/TR 70470 : 1988
1bar = 14.504 psi = 1.0197 kgf/cm2
1 psi = 0.06894 bar = 0.07031 kgf/cm2
1 kgf/cm2 = 14.223 psi = 0.98068 bar
  • Designed for easy maintenance.
  • No metal to metal seat in nozzle for easy opening & closing.
  • All component machined on CNC machine.
  • All components are ultrasonically cleaned, also polishing & deburring in finishing machine.
  • Weated area spring & poppet (pin) made from stainless steel to avoid rusting.
  • Pressure key made from stainless steel & roll threaded to avoid worn out bonnet thread.
  • Gas filtration with stainless steel wiremesh twice from inlet to restrict dust particle to enter.

Body – Forged Brass

Bonnet – Forged Brass

Diaphragm – Reinforced Neoprene

Nozzle – Brass

Seat – PTFE

Filter – Stainless Steel Wire Mesh

Seat Return Spring – Stainless Steel

Bonnet Spring – Spring Steel Plated

Adjusting Knob – Stainless Steel Screw

  • Brazing
  • Heating
  • Welding
  • Research Lab.
  • Cutting
  • Process Control
  • Purging
  • Manifold

Maximum Inlet – 4000 PSIG

Outlet Ranges – 0-1.5 BAR, 0-4.0 BAR, 0-10 BAR, 0-15 BAR
