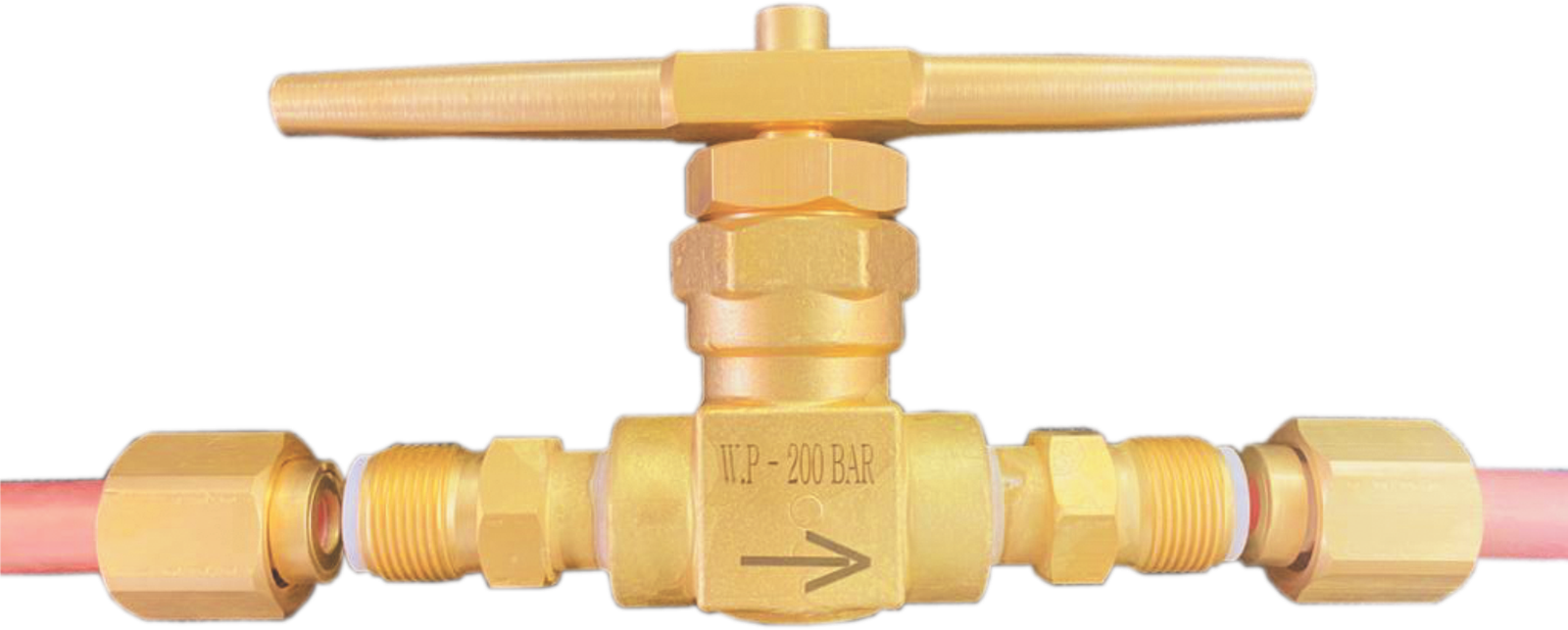

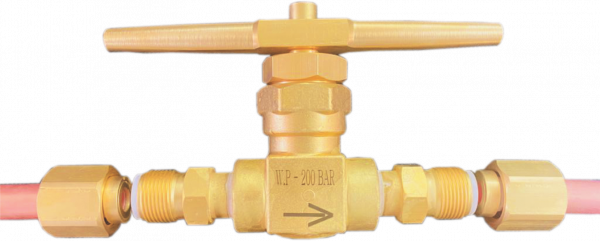

Misatu Master Valve For Manifold
High-pressure shut-off valves designed for heavy-duty Use on manifold systems, fill plants, tube trailers
and Other piping systems, valves are suitable for use with Oxygen, nitrogen, hydrogen, argon, helium,
nitrous-Oxide, acetylene and other inert gases.
Optional Needle Valve
Technical Data Sheet
| Gas Service | Model | Model For Flow Meter | Cylinder* | Delivery | Connections* | |||
|---|---|---|---|---|---|---|---|---|
| Pressure Bar | Guage Range Bar | Pressure Bar | Guage Range Bar | INLET | OUTLET | |||
- Easy Operation : Lowest operating torque available, With long brass handle.
- Flow Control : ½ turns from the closed position To fully open.
- Versatility : specially designed resilient soft seat.
- Interchangeability : Sizes to be interchangeable with Other manufacturers valves
as an Easy drop in replacement for your Current installation. - Vacuum Capable : Vacuum tested to ensure the Highest purity filling operations.
- Field Rebuidable : All valves are field rebuidable.
- Working Pressure ( Maximum ) : 4350 Psi ( 300 Bar )
- Leak Rate Internal / External : Bubble Tight
- Operating Temperature : (-45c to +65c )
Body – Forged Brass
Packing – PTFE
Handle- Brass Long Handle ( For easy Rotation )
Other Parts – Brass
Seat Part- Stainless Steel With Square Threading
Stem “O” Ring – Viton
Backup Ring – Buna –N
Spindle – Brass
Inlet/Outlet – ¾ BSPM
